Bidirectional CAD Plotter Printer / Digital Printing Machine High Speed Servo Control

Bidirectional CAD Plotter Printer / Digital Printing Machine High Speed Servo Control
Bidirectional CAD Plotter Printer / Digital Printing Machine High Speed Servo Control Bidirectional CAD Plotter Printer / Digital Printing Machine High Speed Servo Control

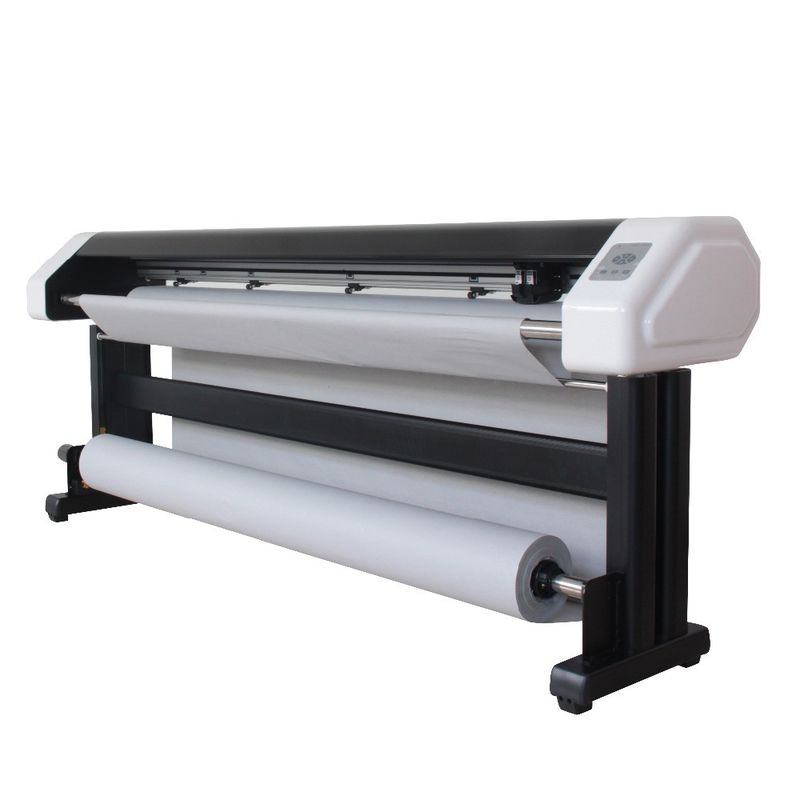

Large Image :  Bidirectional CAD Plotter Printer / Digital Printing Machine High Speed Servo Control

Product Details:
Place of Origin: Anhui, China
Brand Name: TOURE
Model Number: TF-1700
Payment & Shipping Terms:
Minimum Order Quantity: 1 Case/Cases
Price: $800.00 - $2,500.00 / Cases
Packaging Details: International standard wood case(250cm*48cm*50cm)
Supply Ability: 500 Case/Cases per Month
Detailed Product Description
Color & Page: Single Color Gross Power: 500W
Condition: New Automatic Grade: Automatic
Name: Printing Machine After-sales Service Provided: No Overseas Service Provided
High Light:

t shirt printing machine

,

inkjet clothing printer

China popular compatible with all kinds of CAD software inkjet plotter

Specification
Type
TJ12
TR/TF/TX19
TR/TF/TX21
Maxximum paper width
1300mm
2000mm
2200mm
The Maxximum width of the drawing
1150mm
1900mm
2100mm
Number of print cartridge/Type
Dual Spray/HP generic ink cartridegs HP45/6145A
Driving
Digital high-speed servo control,full closed loop positioning
Resolution
150-600DPI(Toner Save Mode Optionnal)
Print speed
80-120㎡/Bidirectional
Command Format
HP-GL
Communication port
USB,Notwork Printing
Software platform
XP,windows7,window8,window10
Nozzle cleaning
Automatic cleaning function
Close Feed
Front automatic admission feeder system,may waive paper printing, convenient printing a large number of short pieces of Mark, saving paper loading time
Enrirnomental Requirements
Temperature of 10℃-35℃ Humidity RH15-85%(no condensation)
Input Voltage
AC220V/60hz power of not less than 400W (AC110V optional)



To enhance efficiency and make work easily, we design dual heads/tools support automatic switch between plotting&cutting, or half cutting&die cutting at the same time.To enhance efficiency and make work easily, we design dual heads/tools support automatic switch between plotting&cutting, or half cutting&die cutting at the same time.





Detailed Images
Bidirectional CAD Plotter Printer / Digital Printing Machine High Speed Servo Control 0
Bidirectional CAD Plotter Printer / Digital Printing Machine High Speed Servo Control 1
Bidirectional CAD Plotter Printer / Digital Printing Machine High Speed Servo Control 2

Cartridges

Unique built-in cartridges, to make the maximum format of printing area.



Mainboard

More stable

Drive

Digital high-speed servo control, full closed loop positioning.
