Hefei Huiteng Numerical Control Technology Co., Ltd.
Home ProductsGarment Inkjet Plotter

Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty

China Hefei Huiteng Numerical Control Technology Co., Ltd. certification
China Hefei Huiteng Numerical Control Technology Co., Ltd. certification
I'm Online Chat Now

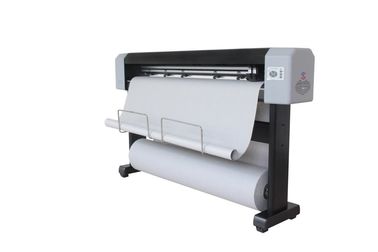

Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty

Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty
Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty

Large Image :  Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty

Product Details:
Place of Origin: Anhui, China
Brand Name: TOURE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Case/Cases
Price: $800.00 - $2,500.00 / Cases
Packaging Details: International standard wood case(250cm*48cm*50cm)
Supply Ability: 500 Case/Cases per Month
Detailed Product Description
After-sales Service Provided: Video Technical Support, No Overseas Service Provided Color & Page: Single Color
Usage: Cloths Printer, Paper Printer Plate Type: Garment CAD Plotter
Type: Inkjet Printer Applicable Industries: Clothing
Condition: New Automatic Grade: Automatic
Voltage: 110V/220V Dimensions(L*W*H): 250cm*48cm*50cm
Weight: 80KG Warranty: 3 Years
Print Dimension: 1650mm Ink Type: HP45
Name: Printing Machine Port: Shanghai Port
High Light:

t shirt printing machine

,

garment plotter machine

,

HP45 Catridges Cad Plotter Printer

Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty

Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty 0
Specification
Type
TJ12
TW19
TW21
Maxximum paper width
1300mm
2000mm
2200mm
The Maxximum width of the drawing
1150mm
1900mm
2100mm
Number of print cartridge/Type
Dual Spray/HP generic ink cartridegs HP45/6145A


Driving
Digital high-speed servo control,full closed loop positioning


Resolution
150-600DPI(Toner Save Mode Optionnal)


Print speed
80-120㎡/Bidirectional


Command Format
HP-GL


Communication port
USB,Notwork Printing


Software platform
XP,windows7,window8,window10


Nozzle cleaning
Automatic cleaning function


Close Feed
Front automatic admission feeder system,may waive paper printing, convenient printing a large number of short pieces of Mark, saving paper loading time


Enrirnomental Requirements
Temperature of 10℃-35℃ Humidity RH15-85%(no condensation)


Input Voltage
AC220V/60hz power of not less than 400W (AC110V optional)


Detailed Images

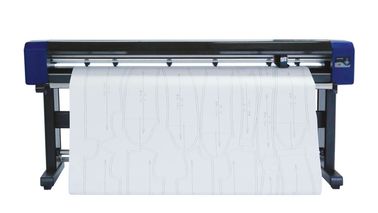

Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty 1



Cartridges

Unique built-in cartridges, to make the maximum format of printing area.

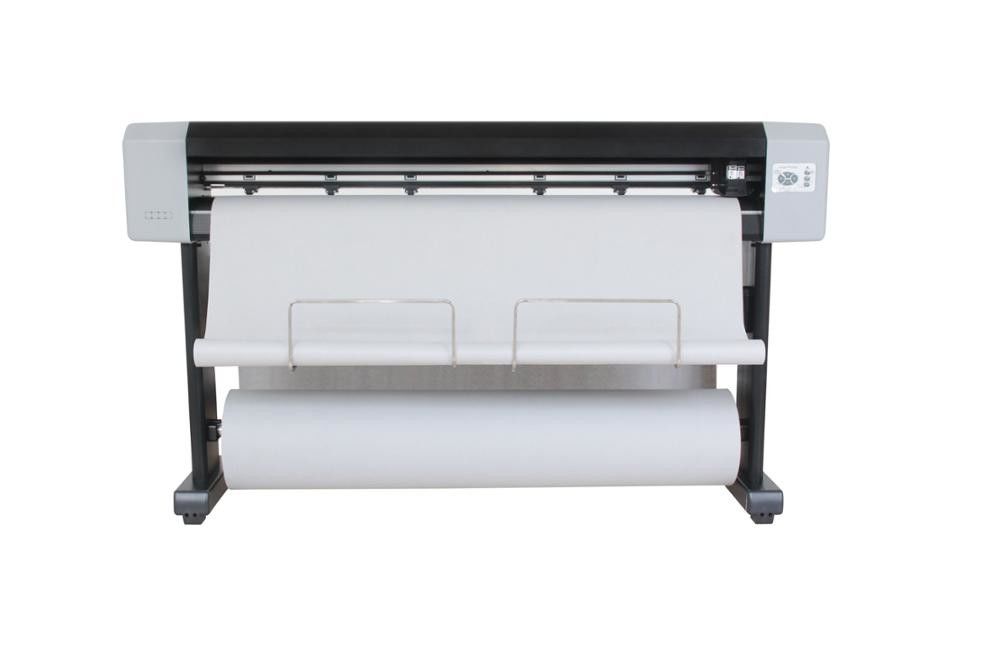

Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty 2



Mainboard

More stable

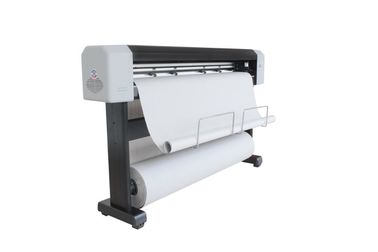

Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty 3



Drive

Digital high-speed servo control, full closed loop positioning.



Company Introduction
Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty 4
Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty 5
Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty 6

Hefei Huiteng Numerical Control Technology Co.,Ltd, our company is a professional garment CAD/CAM hardware and software manufacture from P.R.China. We are in Hefei, a very beautiful city in Anhui province. We have nearly ten-year rich experience specializing in research, development, manufacture and sales of the CAD plotters.We can offer a direct sale and good after-sale service to our customers. In recent years, our products are sold to europe, Southeast Asia, Africa and etc.

Packing & Delivery
Economical Cad Plotter Printer Double HP45 Ink Catridges 3 Years Warranty 7

We adopt the wood case to protect the products not damaged and once we receive the payment, we will arrange the shipment in seven days.
