Hefei Huiteng Numerical Control Technology Co., Ltd.
Home ProductsFlatbed Cutting Plotter

Double Heads Eco Solvent Plotter , USB Interface Digital Flatbed Cutter

China Hefei Huiteng Numerical Control Technology Co., Ltd. certification
China Hefei Huiteng Numerical Control Technology Co., Ltd. certification
I'm Online Chat Now

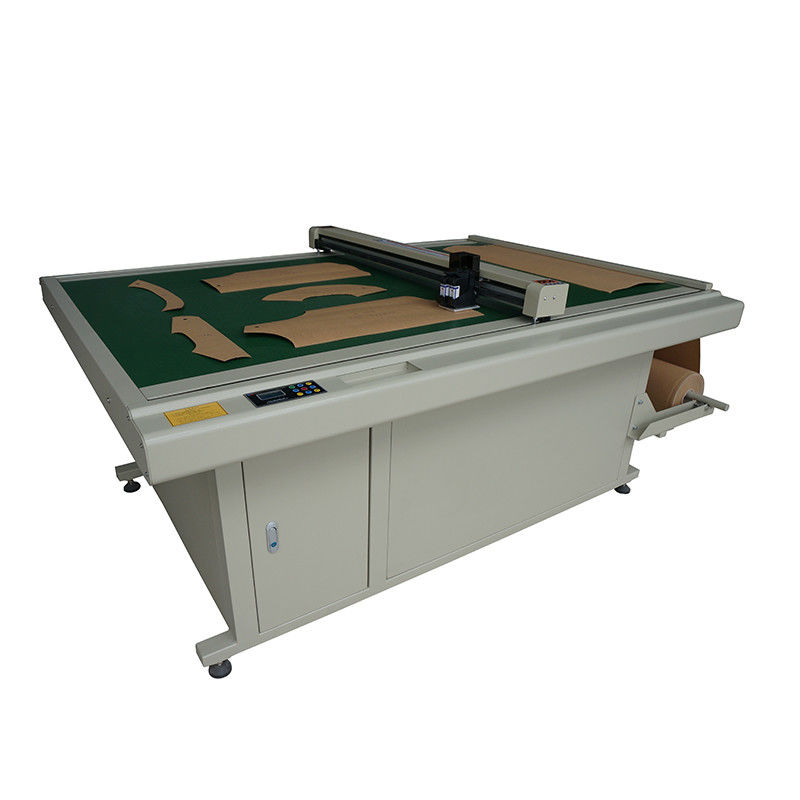

Double Heads Eco Solvent Plotter , USB Interface Digital Flatbed Cutter

Double Heads Eco Solvent Plotter , USB Interface Digital Flatbed Cutter
Double Heads Eco Solvent Plotter , USB Interface Digital Flatbed Cutter

Large Image :  Double Heads Eco Solvent Plotter , USB Interface Digital Flatbed Cutter

Product Details:
Place of Origin: Anhui, China
Brand Name: TOURE
Model Number: TR-YA-170918-04
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: $3,000.00 - $3,900.00 / Pieces
Packaging Details: dustproof design eco solvent garment flat cutter plotter:1 set in international standard wooden case with protective film.
Supply Ability: 500 Set/Sets per Month flat cutter plotter
Detailed Product Description
Product Name: Flat Cutter Plotter Ink Type: Water Based Ink
Print Head: HP 45 Head * 2 Print Interface: Network Interface/USB
Paper Weight: 25g-120g Print Speed: 60m/hour
Effeective Cutting Area: 120cm*90cm Cutting Speed: 1200mm/s
Input Voltage: AC110V/220V Input Power: No Less Than 400W
After-sales Service Provided: Engineers Available To Service Machinery Overseas Port: Shanghai/Ningbo
High Light:

printing plotter machine

,

pattern cutting machine

Double Heads Eco Solvent Plotter , USB Interface Digital Flatbed Cutter

Double Heads Eco Solvent Plotter , USB Interface Digital Flatbed Cutter 0
                      SPECIFICATIONS ABOUT OUR FLAT INKJET CUTTING PLOTTER
Model
QG-1209
QG-1509
QG-1512
Effective cutting area
1200×900mm
1500×900mm
1500×1200mm
Maximum Speed
1200mm/s
1200mm/s
1200mm/s
Dimensions(mm)
1600×1280×750
1900×1280×750
1900×1580×750
Medium attachment means
Vacuum adsorption
Maximum cutting thickness
2mm
Cutting materials
White board, kraft paper, moon plate, red cardboard, fiberboard, etc.
Feed information
Manual Feed/Automatic document feeder
Drawing/Cutting
HP 45 cartridges/special tungsten steel blades
Accuracy
Less than 0.01mm
Transmission interface
USB/Ethernet ports
Interface language
HPGL,HPGL-2,DMPL
Control panel
Full english liquid crystal dispaly, contact key
Motor Driven
Precision subdivision stepper motor, three-phase hybrid driver
Operating Voltage
AC220V ± 10%, 50HZ
Operating Environment
Temperature: -10-50℃, Humidity: 20%-80% RH
Recommended paper board
150-500g/m
Industry
Clothing, footwear, luggage bags, furniture, car decoration, carton, etc
Our Company

Hefei Huiteng Numerical Control Technology Co.,Ltd is a professional garment CAD/CAM hardware and software manufacture from P.R.China. Our company are located in Hefei, a very beautiful city in Anhui province. We have nearly ten-year rich experience about specializing in research, development, manufacture and sales of the CAD plotters.We can offer a direct sale and good after-sale service to our customers. In recent years, our products are sold to europe, Southeast Asia, Africa and etc.

Double Heads Eco Solvent Plotter , USB Interface Digital Flatbed Cutter 2
Double Heads Eco Solvent Plotter , USB Interface Digital Flatbed Cutter 4
Detailed Images
Double Heads Eco Solvent Plotter , USB Interface Digital Flatbed Cutter 6









Drive

Digital high-speed servo control, full closed loop positioning.





Mainboard

high quality, more stable, quicker response

Double Heads Eco Solvent Plotter , USB Interface Digital Flatbed Cutter 8
Packing & Delivery
Double Heads Eco Solvent Plotter , USB Interface Digital Flatbed Cutter 10
Packaging

Size

250cm*48cm*50cm



Packaging Details



1 set in international standard wooden case with protective film
FAQ

Q1: What is the payment way?
A: We usually accept payment by T/T, L/C, Western Union or Trade Assurance.


Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom or if you have your own designed idea and that will      be our honor to customize for you.

Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.

Q4: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days.         Because we've bought insurance for you, we or shipping company will be responsible!



Q5: Where will the orders be shipped from?
A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.






How to ensure the quality of your order products?

Double Heads Eco Solvent Plotter , USB Interface Digital Flatbed Cutter 12
